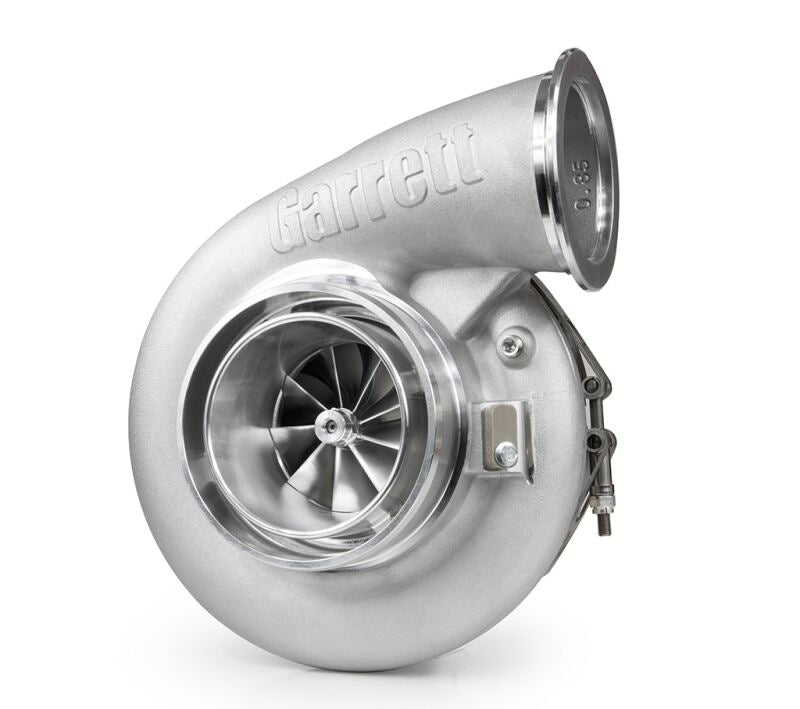

Garrett G45-1610 G-Series II Super Core

G-Series II Turbochargers
Power Of Legends. Durability Of Champions.

PRODUCT FEATURES:

• New compressor aero technology increases power and performance.
• Direct upgrade path for Gen I customers as a complete turbo unit, supercore, or with just a CHRA purchase.
• G-Series II utilizes Gen I compressor and turbine housings.

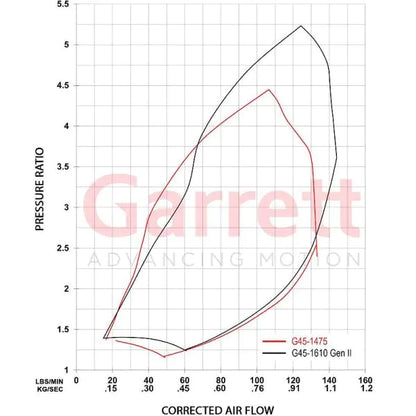

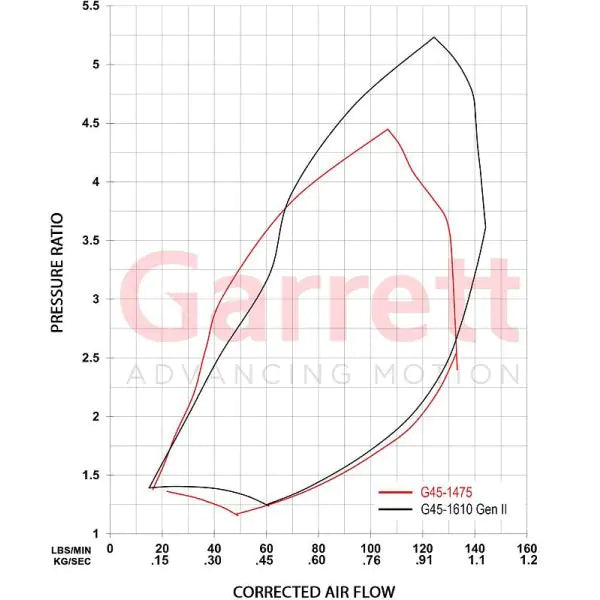

• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
• Calibration required to take advantage of increased flow for a horsepower upgrade.
• Increased efficiency at high flow rates.
• Standard and reverse rotation configurations.
• Mar-M alloy turbine wheel rated up to 1050° C.
• Stainless steel turbine housings are rated up to 1050° C.

Product Specifications:

• Compressor Wheel Inducer: 79mm
• Compressor Wheel Exducer: 98mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.85
• Turbine Wheel Inducer: 89mm
• Turbine Wheel Exducer: 72mm
• Turbine Wheel Trim: 84
