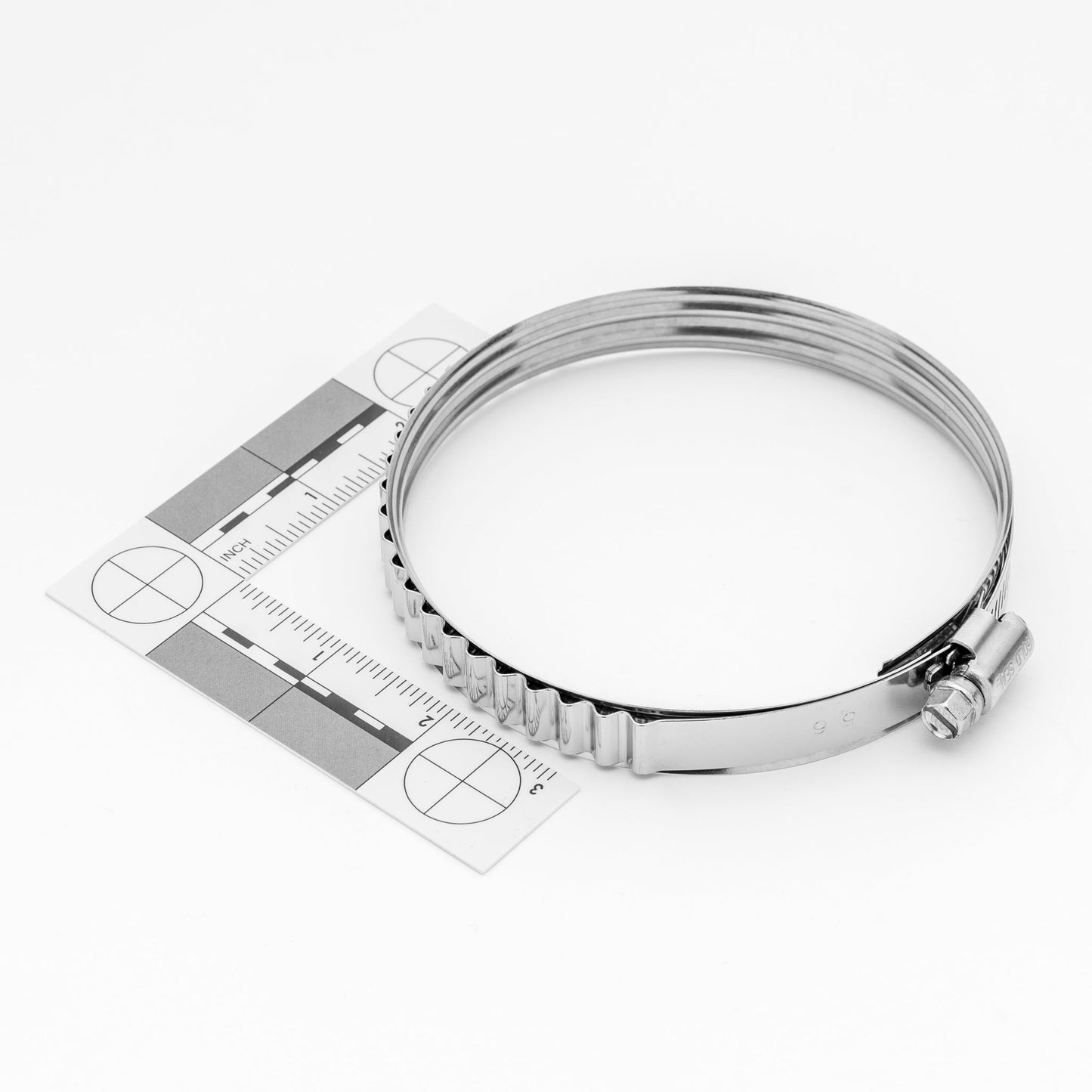

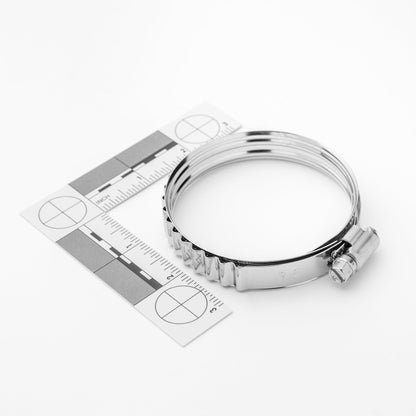

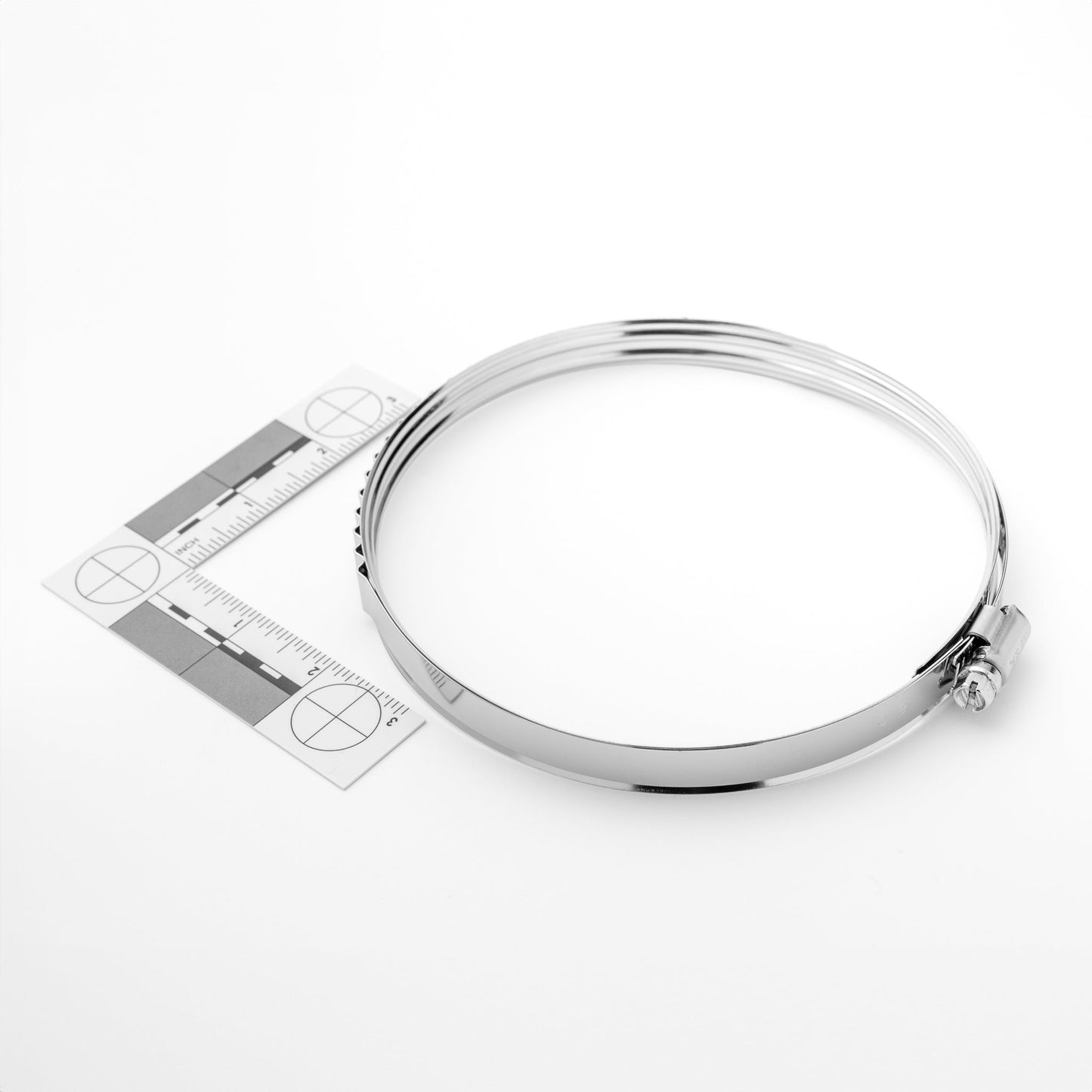

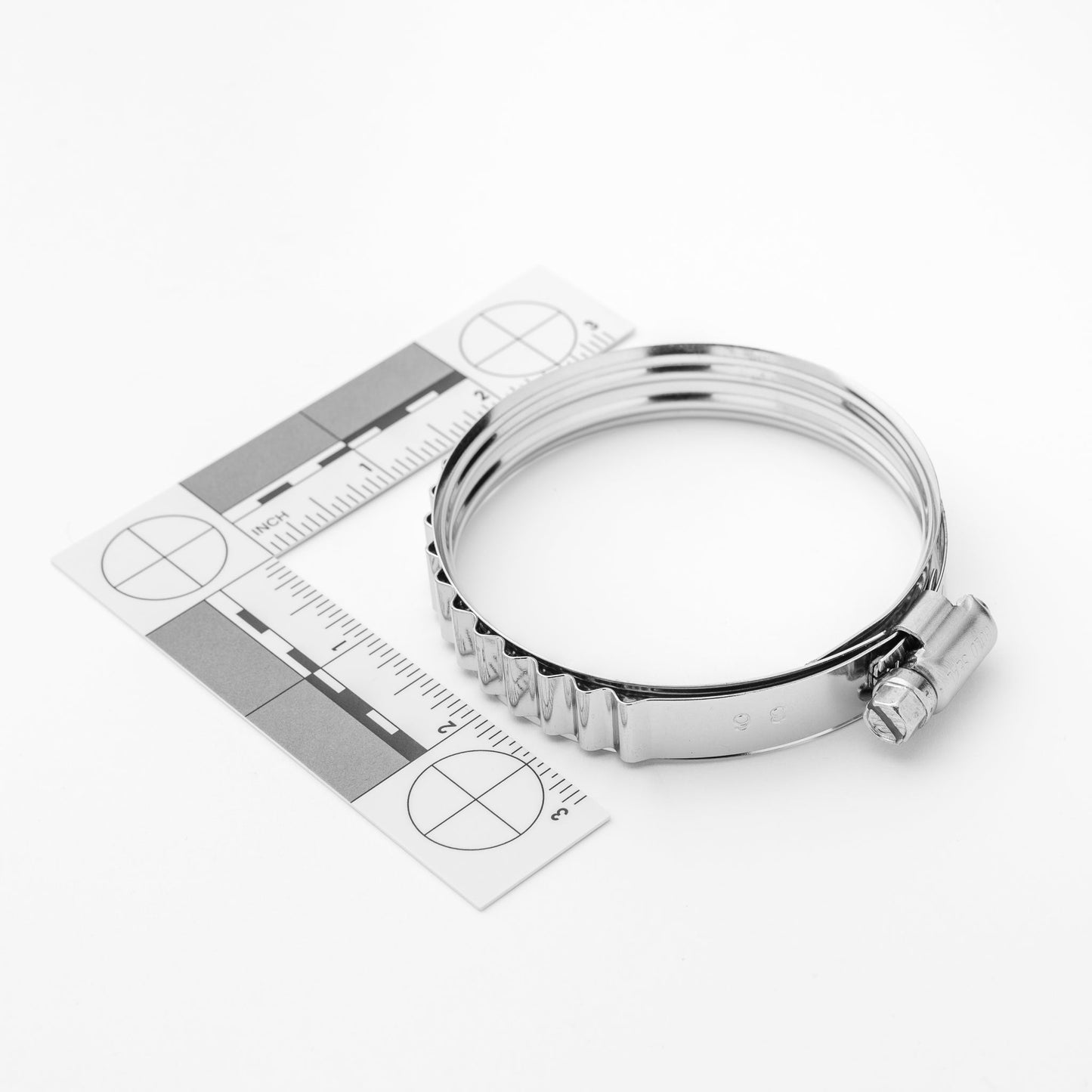

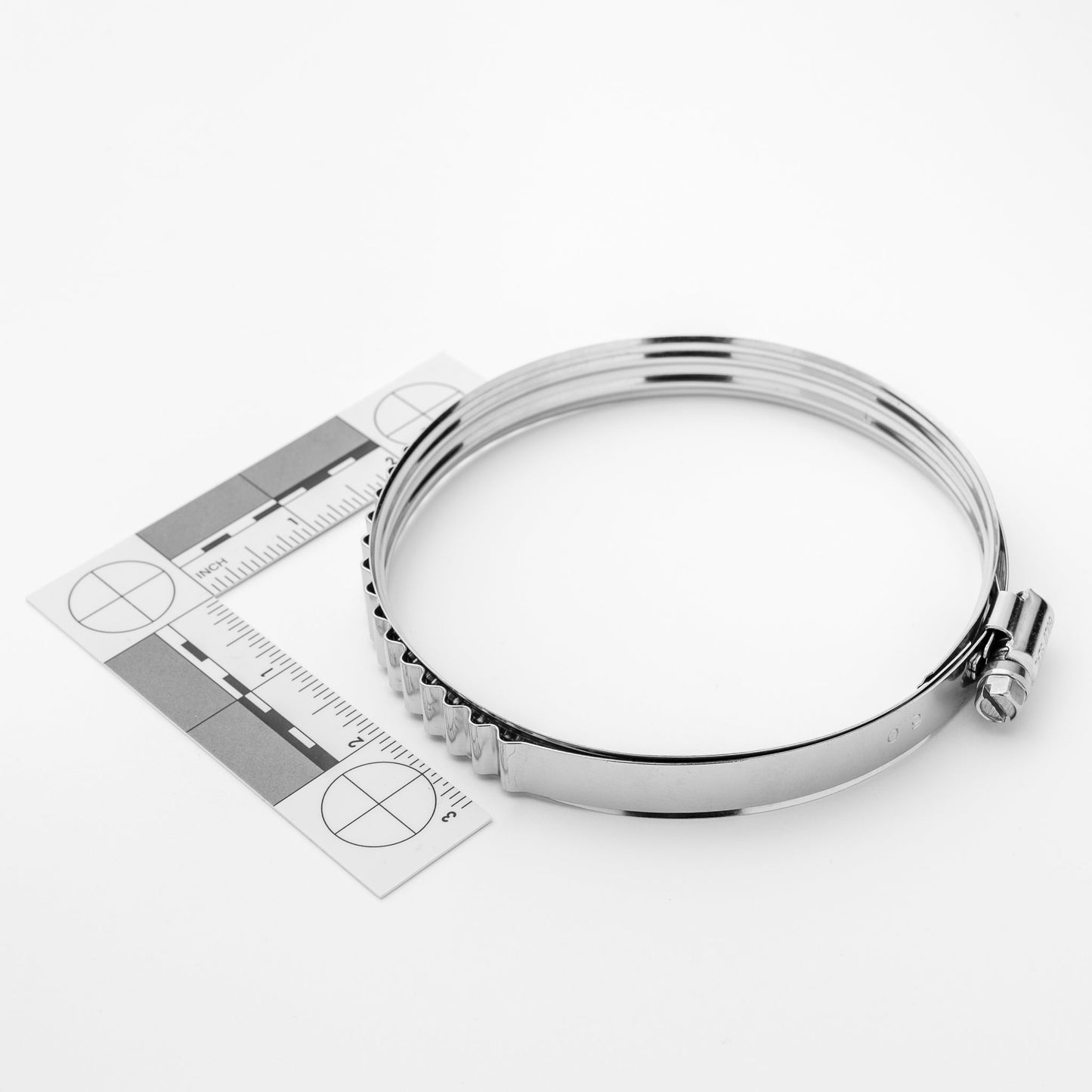

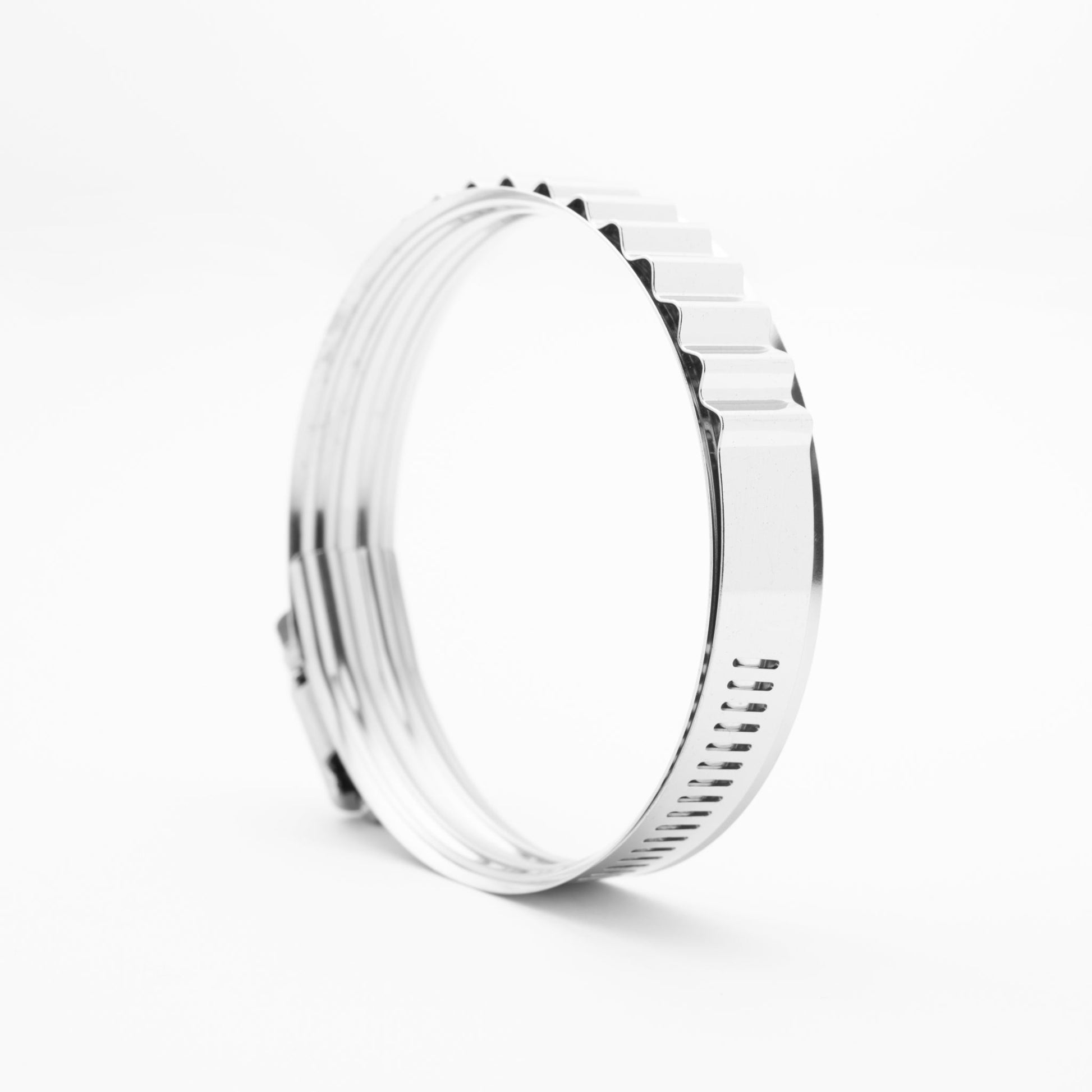

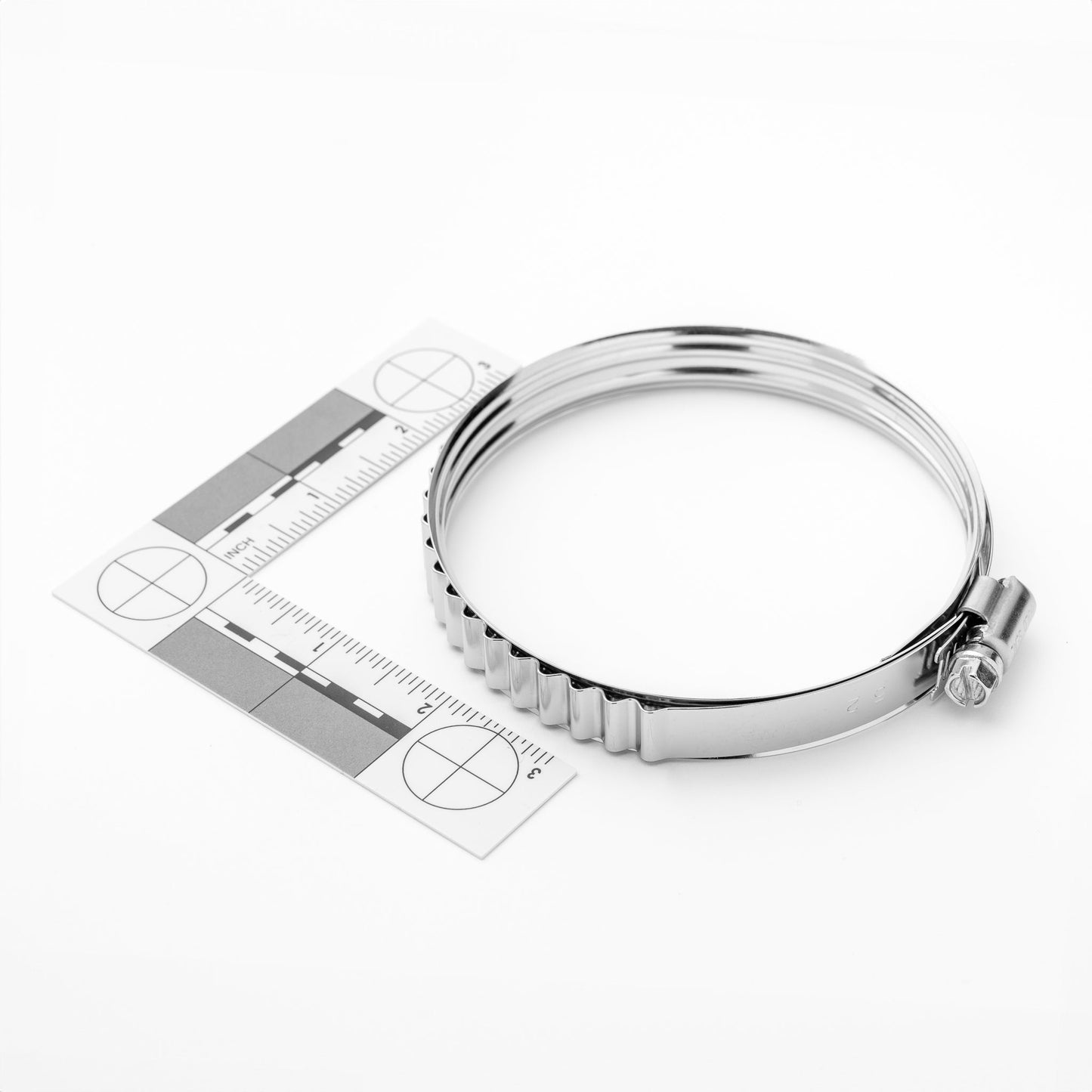

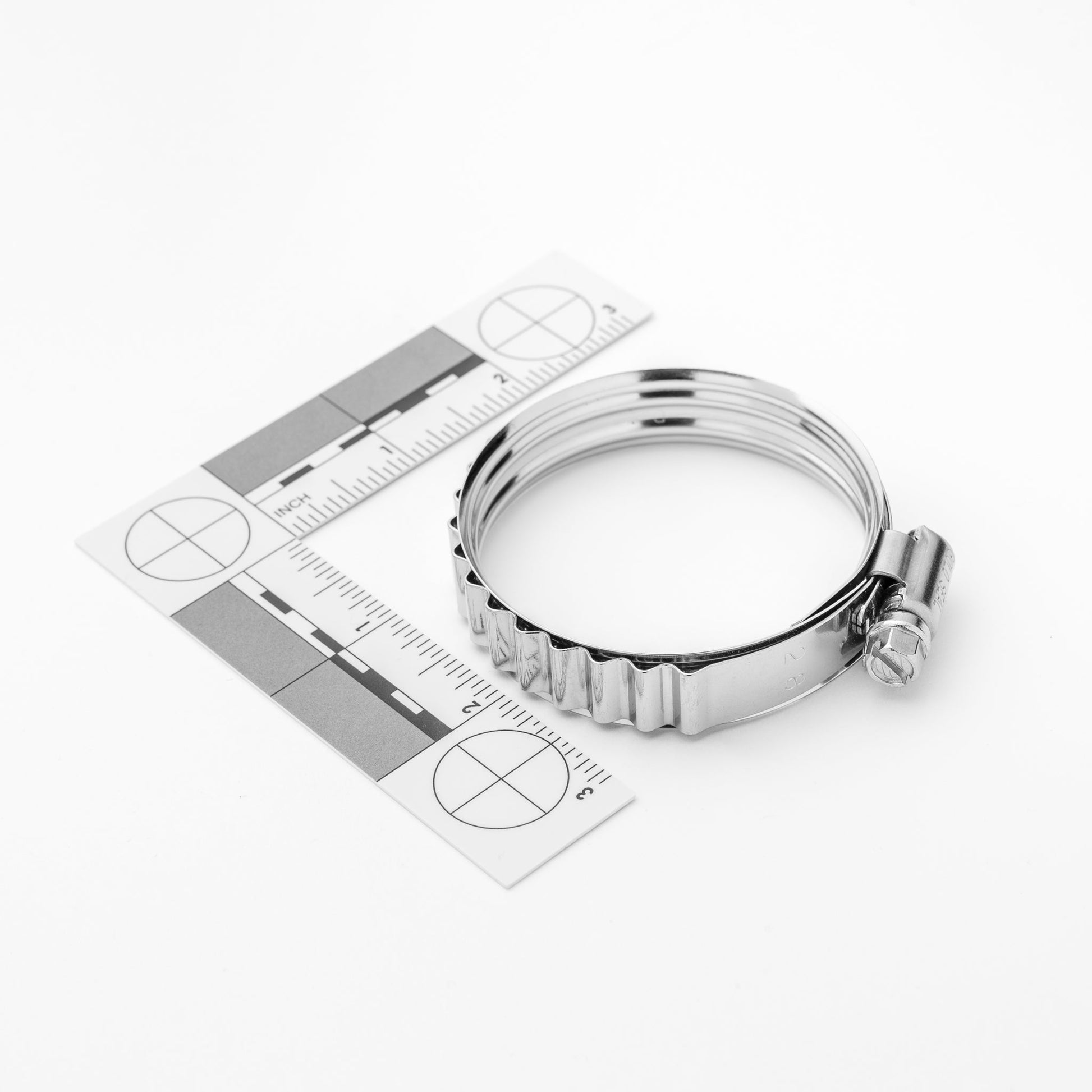

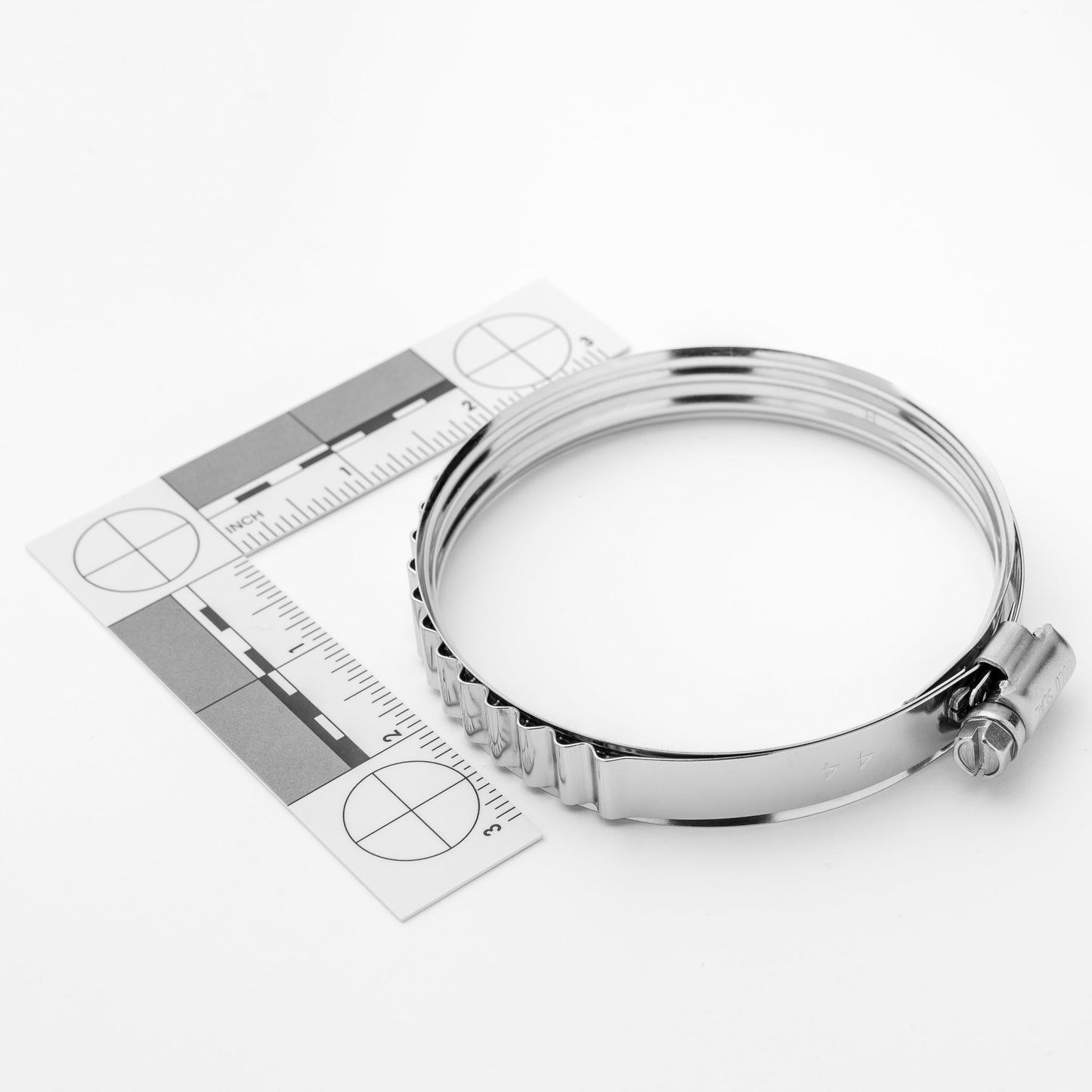

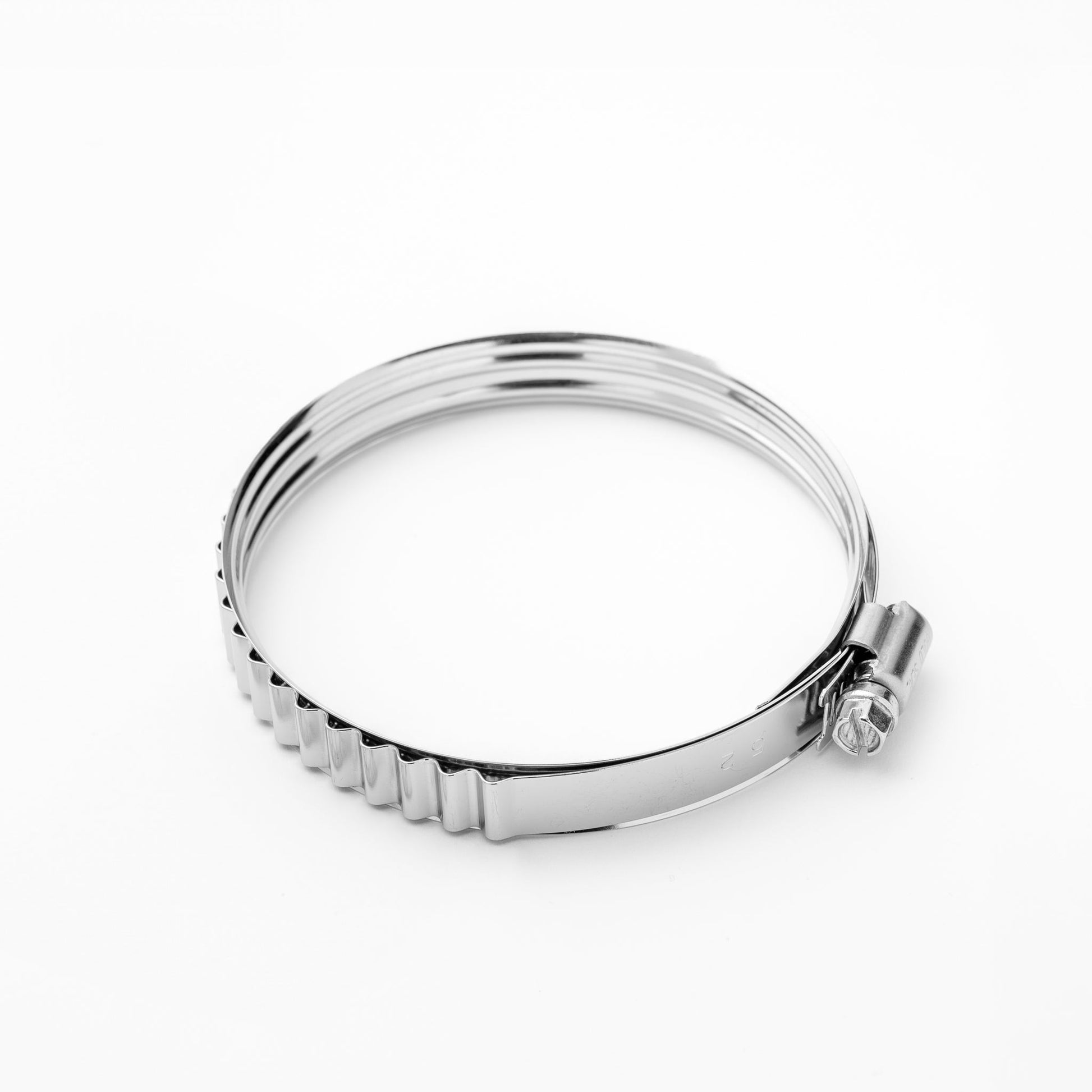

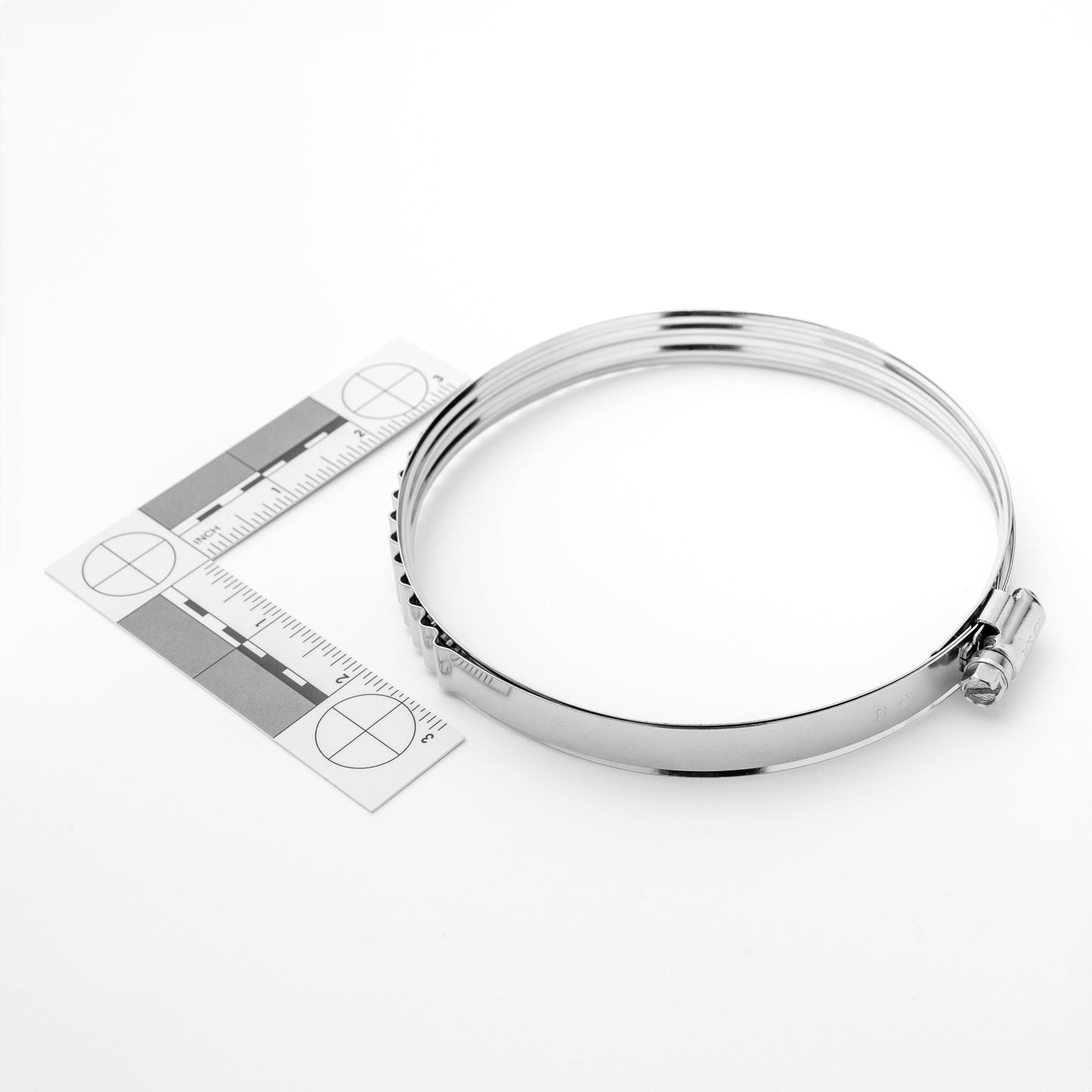

The TSS Constant Tension Hose Clamp is designed for secure, reliable connections in high-performance applications. Perfect for air-to-air and water systems, these clamps are made from 304 stainless steel and feature a constant tension design that adjusts to temperature fluctuations, ensuring a tight seal in extreme conditions.
Features:
-

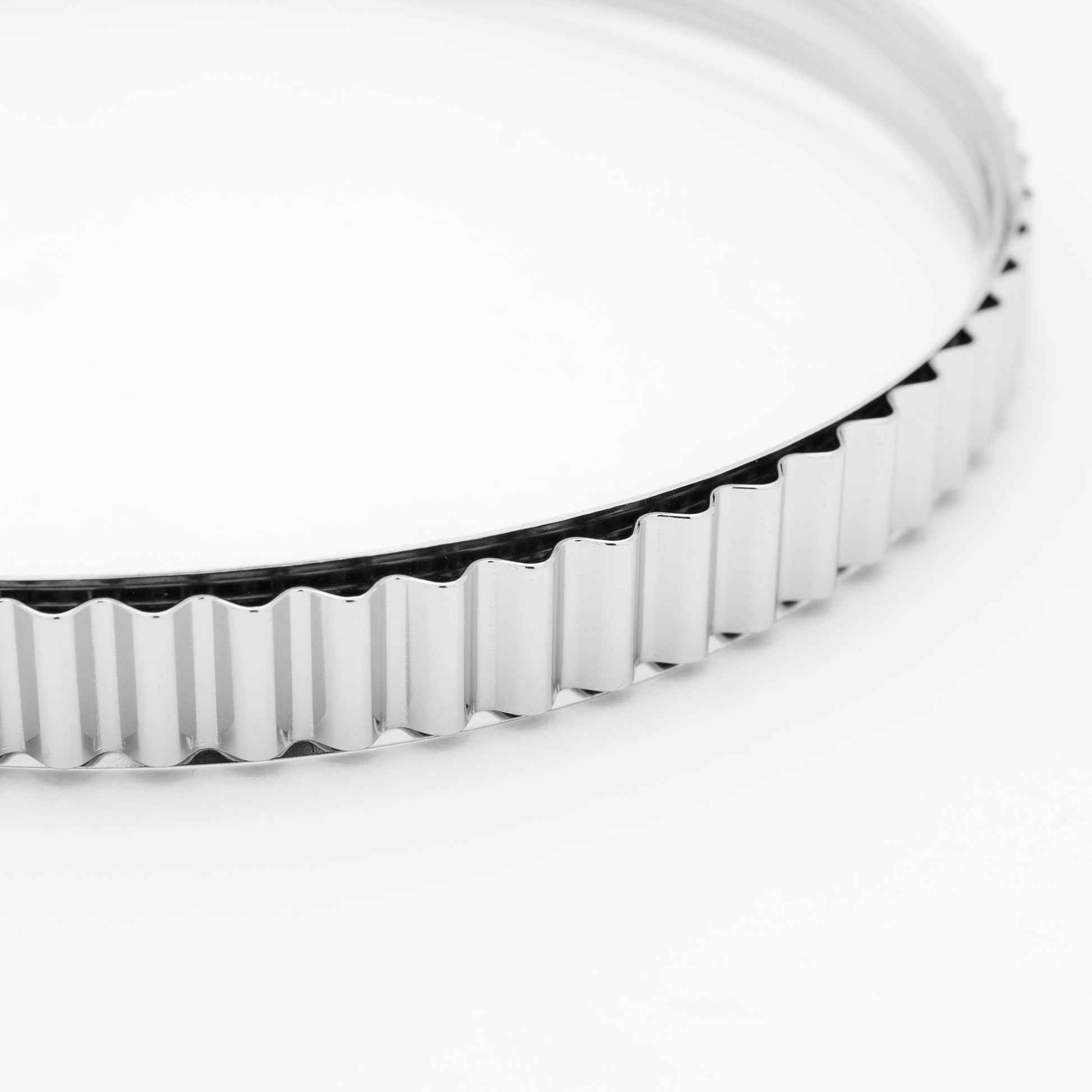

Temperature Compensation: Single spring action and internal beads adjust to temperature variations and thermal cycling for consistent pressure.
-
304 Stainless Steel Construction: Ensures strength, corrosion resistance, and long-lasting performance in demanding environments.
-
Constant-Tension Design: Prevents turbo hose blow-off, keeping hoses securely in place during high-stress conditions.
-

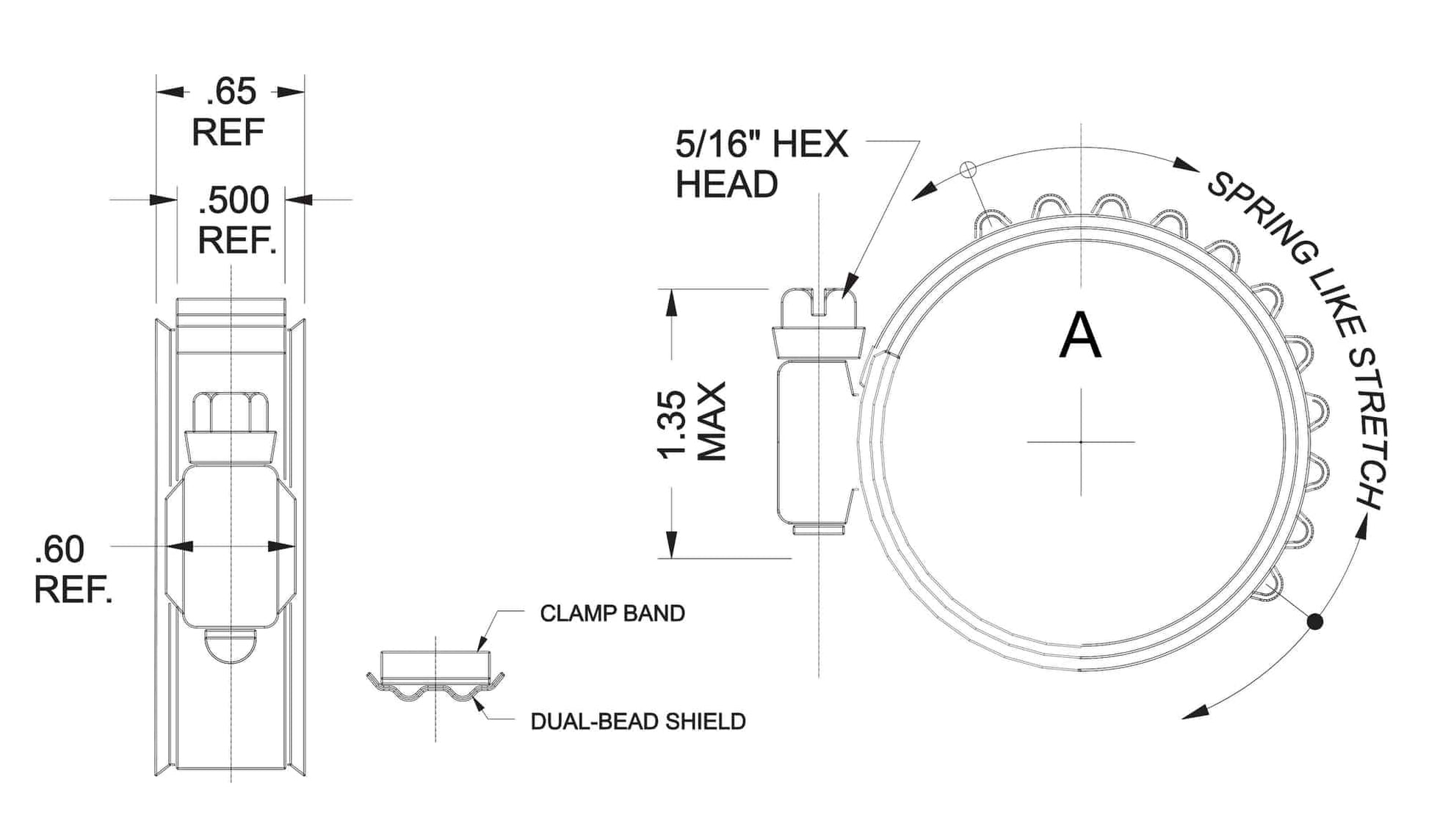

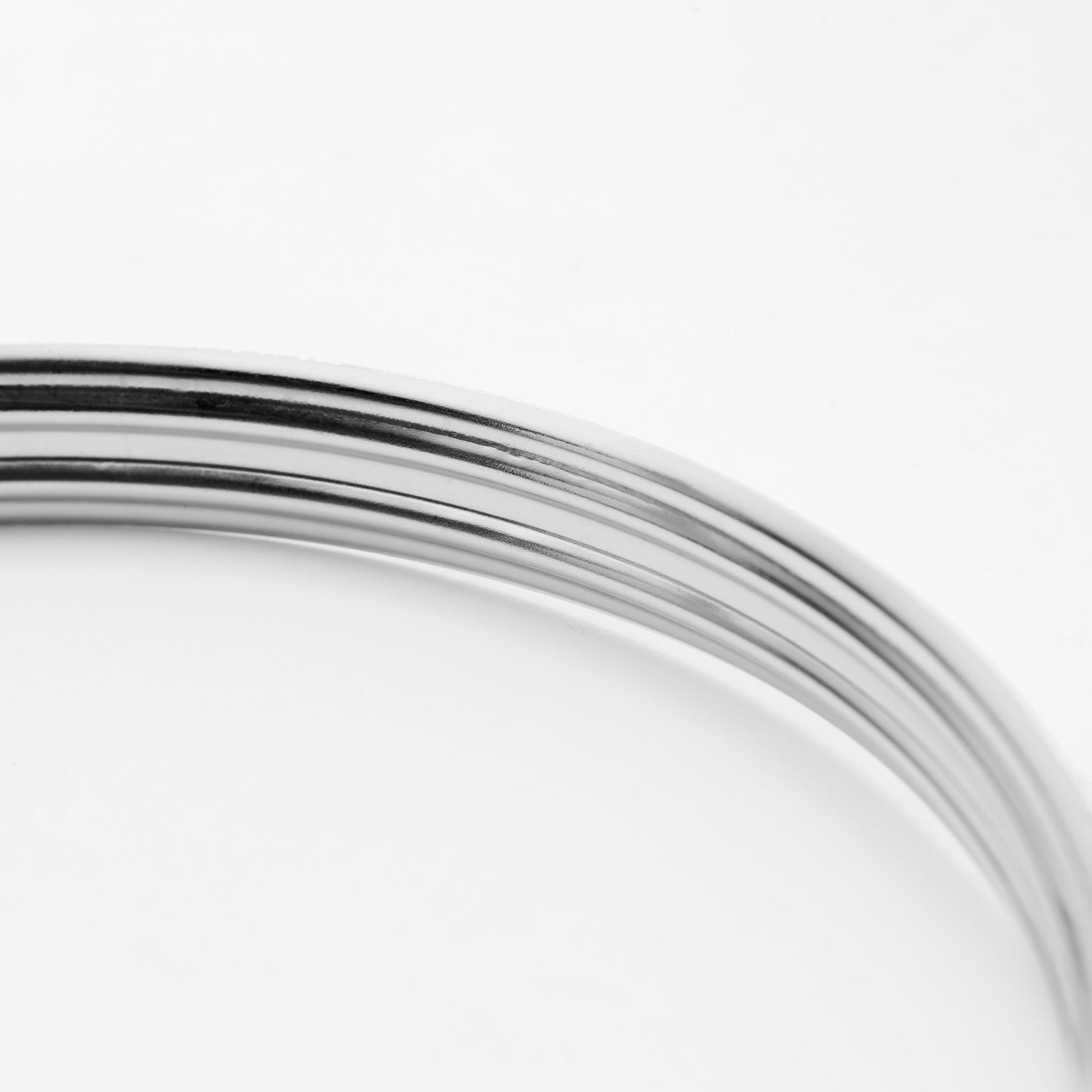

Enhanced Sealing Performance: The clamp is equipped with an exclusive Dual Bead Shield, which increases band sealing pressure and improves sealing efficiency by up to 30%.
-
Available in sizes ranging from 1-¾” to 5”
-
Hose Protection: Flanged edges protect soft hoses, such as silicone, from damage during operation.

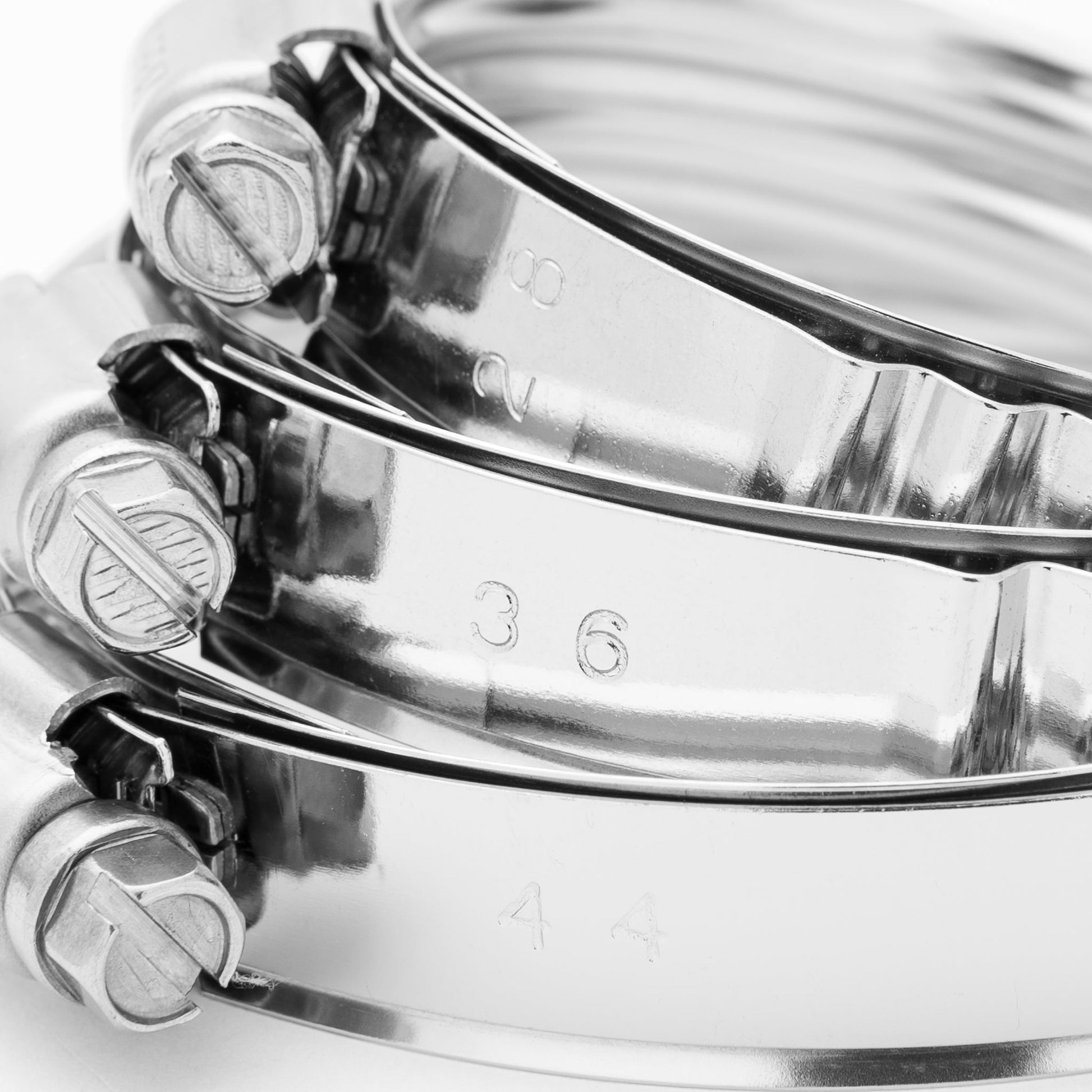

| 411 WORKS Suggested Size | Manufacturer Size Range Inches | Manufacturer Size Range MM | Manufacturer Part # |
| 1 3/4" - 2" | 1-5/8" - 2-3/8" | 41mm - 60mm | TSS 28 |
| 2 1/4" - 2 1/2" | 1-31/32" - 2-7/8" | 50mm - 73mm | TSS 36 |
| 2 3/4" - 3" | 2-1/2" - 3-3/8" | 64mm - 86mm | TSS 44 |
| 3" | 2-3/4" - 3-5/8" | 70mm - 92mm | TSS 48 |
| 3 1/2" | 3-1/4" - 4-1/8" | 83mm - 105mm | TSS 56 |
| 3 1/2" - 4" | 3-1/2" - 4-3/8" | 89mm - 111mm | TSS 60 |
| 4" - 4 1/2" | 4" - 4-7/8" | 102mm - 124mm | TSS 68 |
| 5" | 4-3/4" - 5-5/8" | 121mm - 143mm | TSS 80 |
Why Choose 411 WORKS?
These clamps offer superior sealing and durability for a wide range of applications. Highly polished for a clean, professional finish.
