HKS
Description

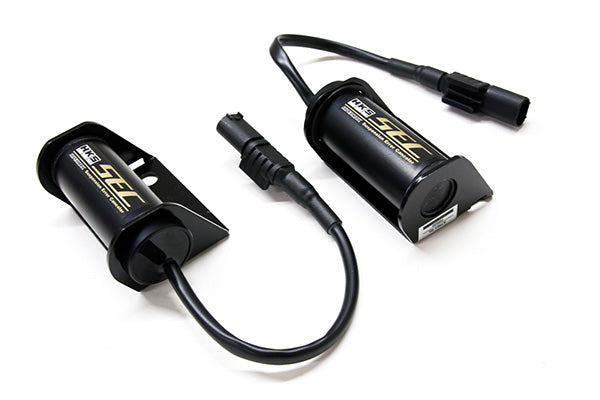

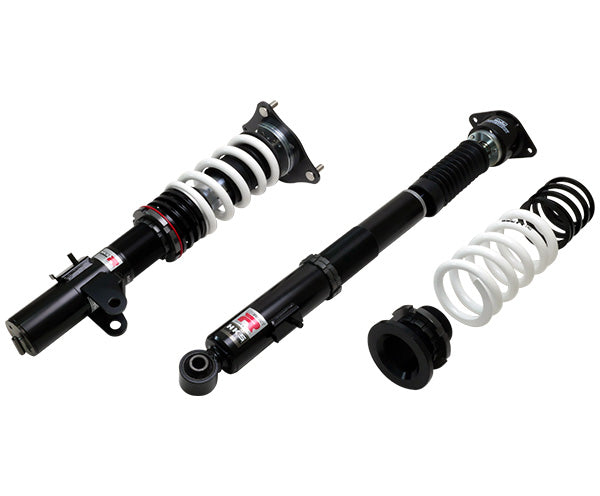

HKS 2022+ Honda Civic Type R Hipermax R FL5 Full Kit w/ Canceller Kit
Technical Information
Product & Application
| Vehicle | Code No. |
|---|---|
| Honda Civic Type R FL5 | 80310-AH005C |
Application
- Engine: K20C
- Model Year: 22/09 –
- Remarks: (none)
Suspension Specification
| Specification | Front | Rear |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | – | – |
| Height-adjustable lower bracket | ✕ | 〇 |
| Upper mount | Spherical bearing | Spherical bearing |
| Inverted / Normal type | Inverted | Normal |
| Damper / Spring layout | Coilover | Separated |
| Spring-rate change at factory | Possible | Possible |
| Damping-force adjustment with wire | – | 〇 |
| Helper spring (Spring rate N/mm) | 〇 (19.8) | 〇 (19.8) |
Ride Height (mm)
| Factory*² | Test data | Adjustable range*³ | Drivable range*⁴ | |
|---|---|---|---|---|
| Front ride height*¹ | 657 | 640 | 660 ～ 636 | 660 ～ 651 |
| Against stock | –18 | –35 | –15 ～ –39 | –15 ～ –24 |
| Rear ride height*¹ | 659 | 640 | 680 ～ 637 | 680 ～ 637 |
| Against stock | –13 | –32 | 8 ～ –35 | 8 ～ –35 |
*² Factory = HKS test setting on Full Kit.
*³ Adjustable range (lowest may not be road-legal; extreme settings can cause contact or leakage and void warranty).
*⁴ “Drivable” = range without body/arm interference (varies by wheel/tire choice and vehicle).
Kit Information – Spring of Full Kit
| Front | Rear | |
|---|---|---|
| Spring rate N/mm (kgf/mm) | 137 (14.0) | 137 (14.0) |
| Free height (mm) | 150 | 150 |
| Spring type | Straight | Straight |
| Recommended spring-rate change N/mm (kgf/mm) | +20 (2) | +20 (2) |
Specification of Damper
| Front | Rear | |
|---|---|---|
| Damping force (Rebound / Damping) N* | 1,172 / 530 | 294 / 280 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound / Damping) mm | 58 / 41 | 88 / 61 |
Test Vehicle Information
| Front | Rear | |
|---|---|---|
| Vehicle weight (kg) | 890 (890) | 541 (540) |
| Tire size (Air pressure) (kPa) | 265/35-18 (200) | 265/35-18 (200) |
| Wheel size | 9.5 JJ × 18 inset 45 | 9.5 JJ × 18 inset 45 |
| Alignment (Toe / Camber) – Test data | out 1 mm / –3°57′ | out 1 mm / –1°59′ |
| Alignment – Standard value | in 1 ± 2 mm / –0°18′ ± 0°30′ | in 2 ± 2 mm / –1°12′ ± 0°45′ |
Fitment Details
| Engine | K20C |
|---|---|
| Model Year | 22/09 – Present |
| Remarks | — |
