Compressor Specifications - Billet Fully-Machined Custom Wheel

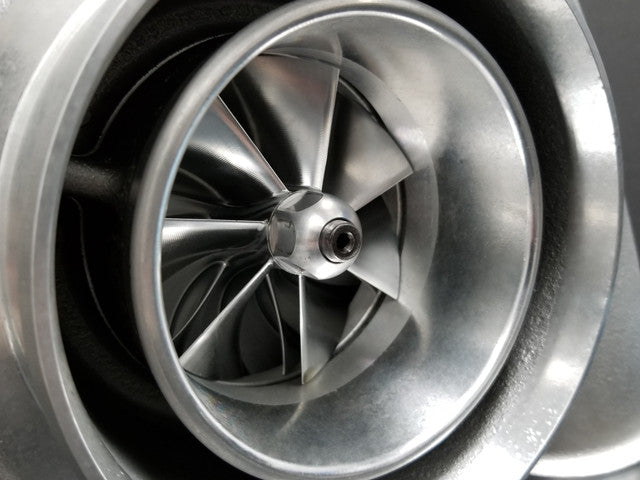

Compressor Wheel Inducer: 80mm
Compressor Wheel Exducer:
Compressor Wheel Trim:
Compressor Cover: WORK HP "Race" Cover
Maximum Airflow: 140 Lb/Min (up to 1400 bhp)
Turbine Specifications
Turbine Housing: T6 Twin Scroll 1.32 A/R EWG (Options Available)
Turbine Wheel Inducer: 96mm
Turbine Wheel Exducer: 88mm
In-house designed 360* Severe Duty Thrust Bearing
3 Stage Balancing
Gloss Black Semi-Ceramic Bearing Housing (CHRA) Coating
Satin Black Semi-Ceramic Turbine Housing Coating
1-Year Warranty on materials and craftsmanship

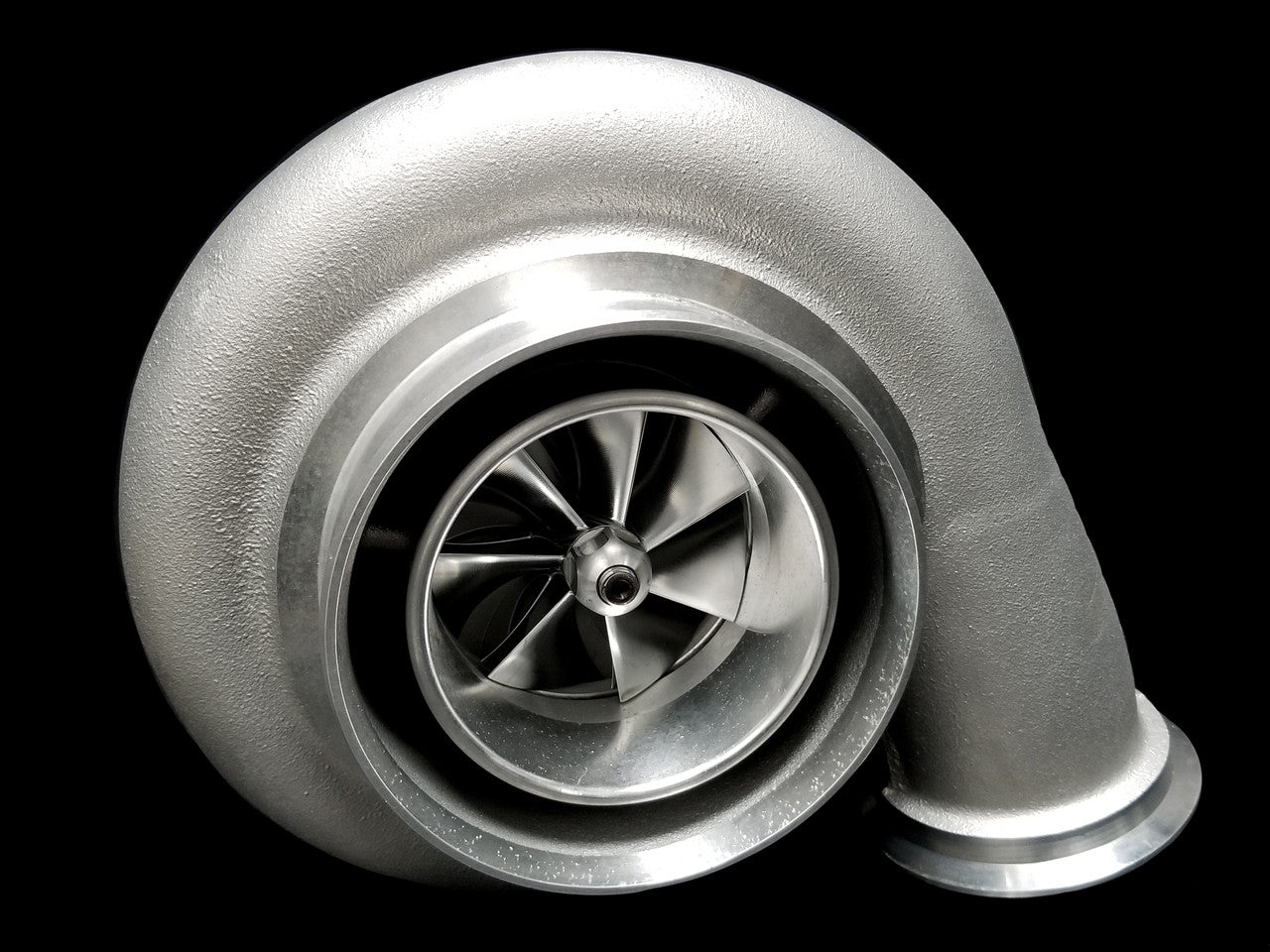

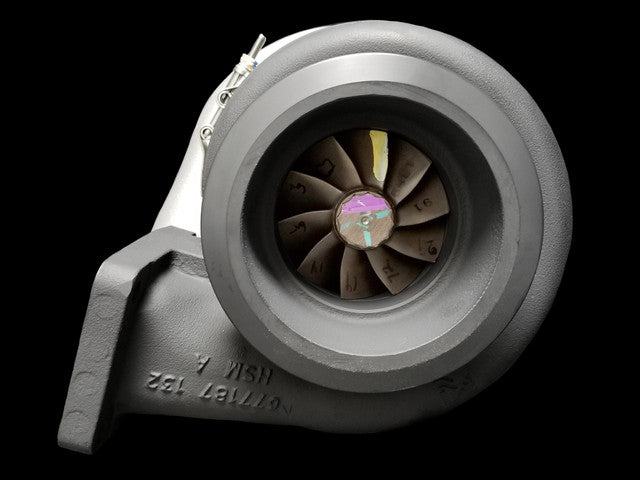

WORK is proud to announce our latest update to the proven S4E family of turbochargers! Equipped with our Billet 80mm compressor wheel rated at 140 #/min, and a newly re-designed HP "Race" compressor cover . The new S4E will respond faster and make more power and at a new lower price! Each S4E will feature the 96x88mm turbine wheel, 1.32 A/R T6 turbine housing, WORK USA MADE Severe Duty 360° thrust bearing, 3 stage balancing, gloss black bearing housing coating and satin black turbine housing coating in standard trim. WORK also offers alternate turbine housings in T4, T6 and V-band configurations. Questions? Give us a call and we will be more than happy to help!
All WORK Turbocharger units are custom built just for you and your application, therefore these units will have a lead time before shipping out to you. You will receive an email or phone call once your order has been placed with an estimated time of completion. We are proud to offer true custom built turbochargers for your project, and we guarantee the product will be well worth the wait! Included with the purchase of your turbocharger, you will also receive any tech help you may need along the way to ensure your project is a success!
